Railway Vehicle Communication Solution Ensuring Interoperability with a Dynamic Interface

TDN is a TROSAR (Train Open Software Architecture) network that implements a dynamic interface for railway vehicle networks based on TCN (Train Communication Network), the international railway vehicle standard network defined by IEC 61375.

TROSAR platform aims to ensure interoperability and safety of control devices and control software within railway vehicles. NetVision develops and provides railway communication solutions and technologies that guarantee interoperability based on dynamic interfaces.

TDNopen protocol technology for dynamic interface communication

Vendor-independent and cross-device interoperability supportImplementation of EtherCAT technology based on TCN standardsResolution of wiring complexity and equipment scalability issues in ring topologyDeployment of various railway communication networks, including ECN (Ethernet Consist Network) and CCN (CANOpen Consist Network)

Development of multi-gateway and gender solutions for TDN

Application of EtherCAT technology within TDN networks

TDN compatibility verification and validation

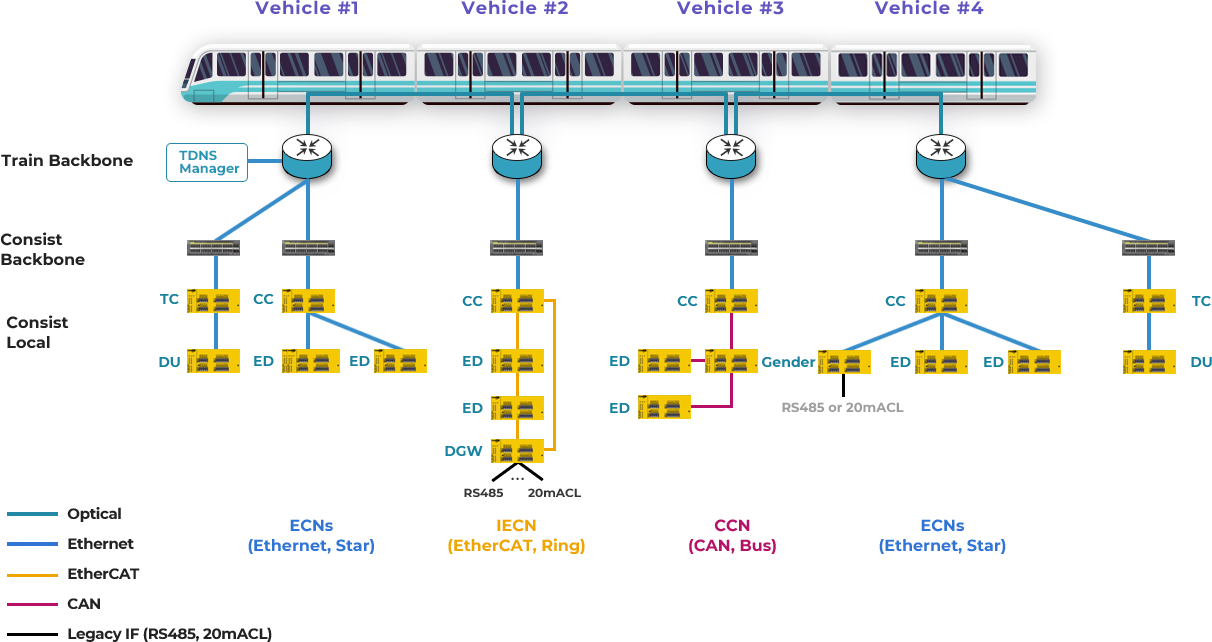

TDN Testbed (Logical Structure)

TDN Testbed (Logical Structure)

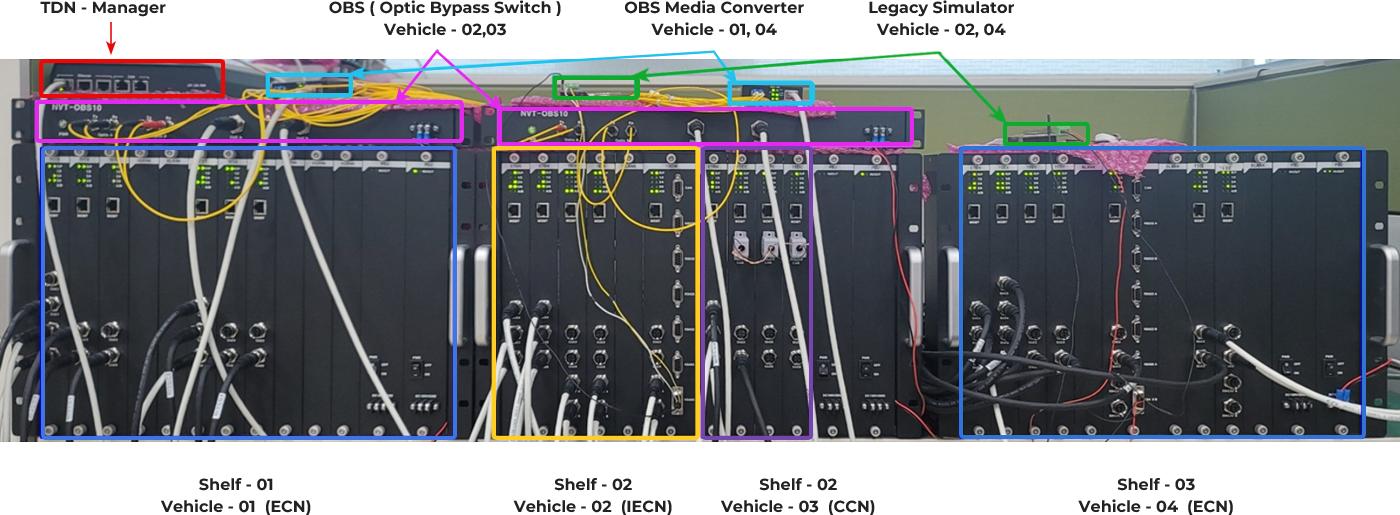

TDN Testbed (Physical Structure)

TDN Testbed (Physical Structure)

Gateways (DGW, Gender)

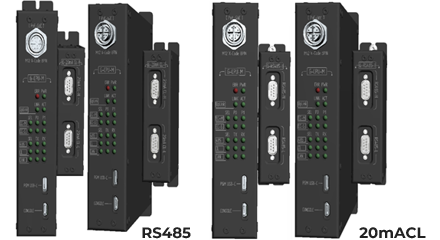

Ethernet DGW

Ethernet DGW

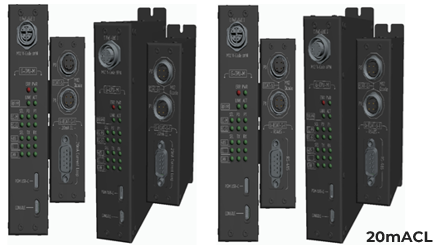

Ethernet Gender

Ethernet Gender

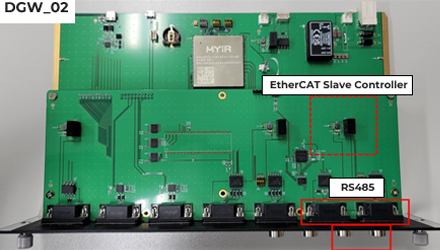

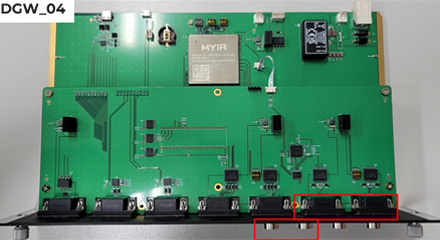

EtherCAT DGW

EtherCAT DGW

EtherCAT Gender (M)

EtherCAT Gender (M)

EtherCAT Gender (S)

EtherCAT Gender (S)

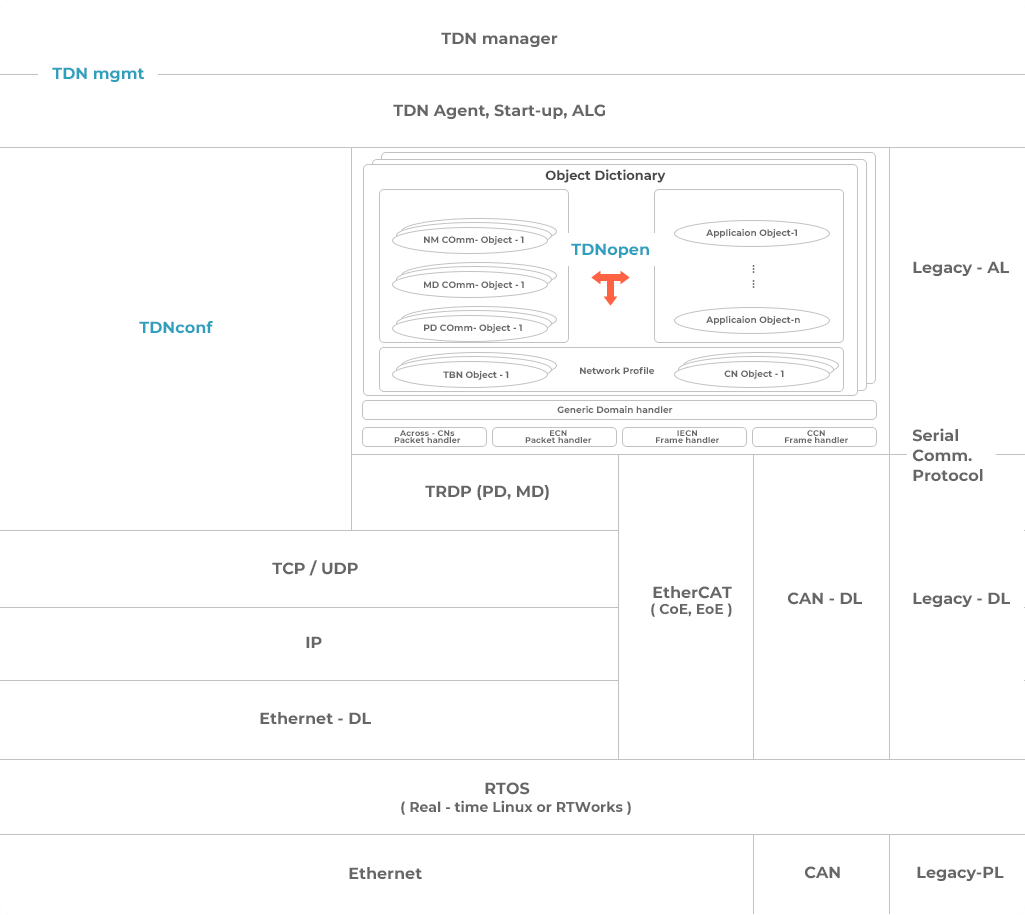

TDNopen Protocol Stack

TDNopen Protocol Stack

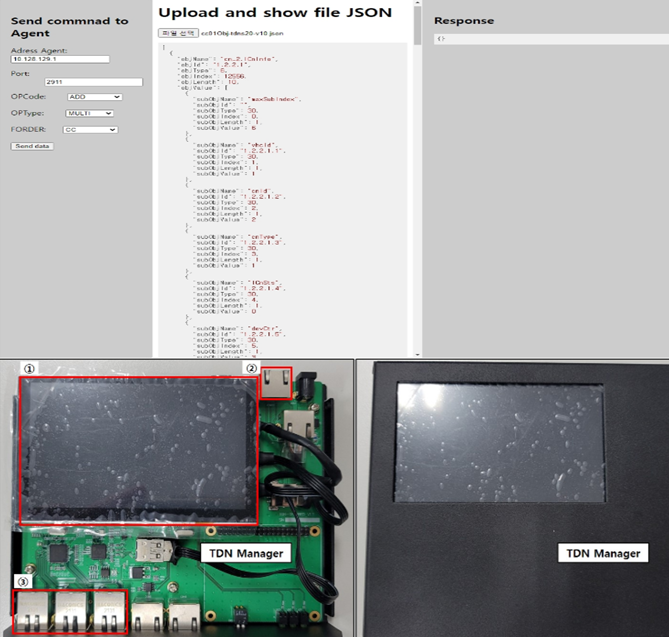

TDN Manager (Object Dictionary Editor)

TDN Manager (Object Dictionary Editor)
